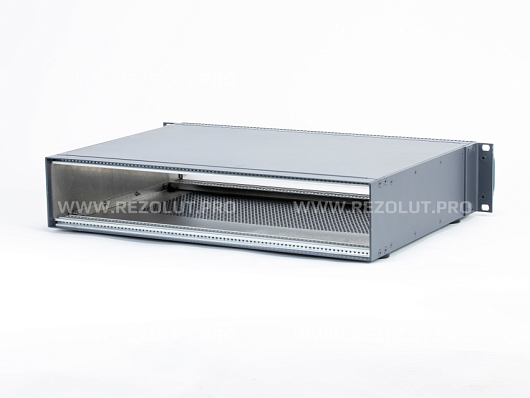

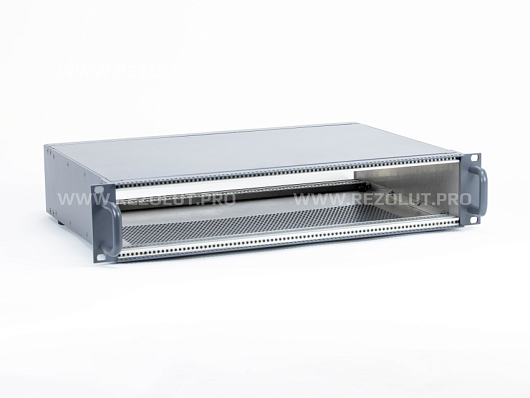

19" Desktop Case for individual
electronic components installation
- Ventilation openings in bottom cover
- Back panel with perforation
- Front panel with engraving per customer request
- Design option with 19" assembly brackets and front handles
- Possibility of height modification from 2 U to 9 U
- Possibility of width modification from 28 HP to 84 HP
- Possibility of color selection according to RAL color set
- Individual solutions (cut-outs in upper cover, bottom panel and lateral panels)
catalog number:
LTFN.26.001-00
shipment:
from 15 days
Leave a message
characteristics
Product type
Case
Product line
Case for individual electronic components installation
Type
Case for 19" Subrack and 19" Chassis
Rack Height
2 U, 3 U, 4 U, 5 U, 6 U
Material
aluminum
Rack Width
28 НР, 42 НР, 63 НР, 84 HP
Depth
175 mm, 235 mm, 295 mm, 355 mm, 415 mm, 475 mm
Static Load
25 kg
Protection Rating
IP 20
additional information
-
Chassis are delivered in assembled form
- Possibility of depth modification up to 1000 mm
- Possibility of width modification up to 1000 mm
